641 Week 11 Outline on MongoDB

NoSQL Databases do not organize data as tables linked by PK-FK relations. Instead, they use a different logical data model:

• Document Model
• Graph Model
• Key-value pair

Why NoSQL: prevalent use of small devices and distributed systems of apps requires (flexible data structure, big data, high demand for availability)

• scalable horizontally: no need to change data structure in order to add new data fields
• optimized for a specific data model with compromises:
  • basic availability
  • soft state
  • eventual consistency

NoSQL Database Examples (MongoDB, DynamoDB, CouchDB, etc.)

CAP Theorem: Any distributed system can satisfy only two of the three properties: consistency, availability, and partition tolerance. This theorem classify NoSQL databases into three categories.

ACID Properties guarantee data validity despite errors and failures.

MongoDB Data Model:

• A database is a set of collections
• A collection is a set of documents
• document --> record, collection --> table,
• JSON: {...} for document, [...] for array or list of, X : Y for key-value pair
• JSON: allows embedded objects inside an object
• JSON: format for storing and communicating object data by JavaScript
• BSON (binary encoded JSON) includes type extension: _id field, and Date values
• MongoDB Data Types: string, integer, double, Date, Array, ObjectId, binary, Null
• MongoDB for large files (GridFS), server failures (replication), and big data I/O (sharding)
• GridFS: how to load large files into MongoDB

MongoDB Installation: follow the link https://www.ecourse.org/news.asp?which=5020 for Windows installation and https://www.ecourse.org/news.asp?which=5343 for Linux.

MongoDB Shell Access:

• How to logon to MongoDB
• How to create/remove user accounts, change passwords, and grant roles
• How to lookup databases, collections, and documents
• How to insert new documents
• How to remove documents, collections, and databases
• How to rename a database and a collection

 Access to MongoDB Shell

The mongo shell is an interactive JavaScript interface to MongoDB. You can use the mongo shell to query and update data as well as perform administrative operations.

The mongo shell is included as part of the MongoDB Server installation. Once you have installed and have started MongoDB, connect the mongo shell to your running MongoDB instance.

cd /bin

mongo

mongo --port 28015

use <database>

use myNewDatabase
db.myCollection.insertOne( { x: 1 } );

db.getCollection("3 test").find()
db.getCollection("3-test").find()
db.getCollection("stats").find()

db.myCollection.find().pretty()

> if ( x > 0 ) {
... count++;
... print (x);
... }

> if (x > 0
...
...
>

Login to mongodb shell

ubuntu@ip-10-0-1-223:~$ mongo 10.0.1.223
MongoDB shell version: 2.4.9
connecting to: 10.0.1.223/test

Create your database by inserting items

> db.penguins.insert({"penguin": "skipper"})
> db.penguins.insert({"penguin": "kowalski"})

Check if it is there:

> show dbs
local      0.078125GB
penguins   0.203125GB

Lets make that database the one we are on now

> use penguins
switched to db penguins

Print json:

> printjson({"foo":"bar"})
{ "foo" : "bar" }

Get the rows back:

> db.penguins.find()
{ "_id" : ObjectId("5498da1bf83a61f58ef6c6d5"), "penguin" : "skipper" }
{ "_id" : ObjectId("5498da28f83a61f58ef6c6d6"), "penguin" : "kowalski" }

We only want to find one row

> db.penguins.findOne()
{ "_id" : ObjectId("5498da1bf83a61f58ef6c6d5"), "penguin" : "skipper" }

Get the _id of that row:

> db.penguins.findOne()._id
ObjectId("5498da1bf83a61f58ef6c6d5")

Example loop, print strings:

> db.penguins.find().forEach(function (doc){ print("hi") })
hi
hi

Example loop, same as find(), print the rows

> db.penguins.find().forEach(function (doc){ printjson(doc) })
{ "_id" : ObjectId("5498dbc9f83a61f58ef6c6d7"), "penguin" : "skipper" }
{ "_id" : ObjectId("5498dbd5f83a61f58ef6c6d8"), "penguin" : "kowalski" }

Drop the database when you are done:

> use penguins
switched to db penguins
> db.dropDatabase()
{ "dropped" : "penguins", "ok" : 1 }

Make sure it's gone:

> show dbs
local   0.078125GB
test    (empty)

How to Format Date/Time Values

There are two ways to insert a date value into a MongoDB document: use function ISODate() function and Date() constructor in JavaScript.

Here is an example document to use ISODate() function:

{

        sid: 1234567,

        sname: "John Doe",

        date: ISODate('2001-12-31T12:01:15.123Z')

}

Here is an example document of using Date() constructor:

{

        sid: 1234567,

        sname: "John Doe",

        date: new Date(2001, 12, 31, 12, 01)

}

Note that, new Date() will give the current system date and time if no specific year, month, day, etc. are specified.

In order to insert Date() in MongoDB through Mongo shell, use the following syntax

var yourVariableName = new Date(year, month, day, hour, minute);
db.yourCollectionName({yourDateFieldName:yourVariableName});

Let us first create a date variable

> var creatingDate = new Date(2019, 03, 29, 13, 12);

Let us create a collection with documents:

>db.insertingDateUsingVariableDemo.insertOne({"UserName":"John","UserMessages":["Hi","Hello","Awesome"],"UserPostDate":creatingDate});

Following is the query to display all documents from a collection with the help of find() method

> db.insertingDateUsingVariableDemo.find().pretty();

This will produce the following output

{
   "_id" : ObjectId("5c9d1b19a629b87623db1b21"),
   "UserName" : "John",
   "UserMessages" : [
      "Hi",
      "Hello",
      "Awesome"
   ],
   "UserPostDate" : ISODate("2019-04-29T07:42:00Z")
}

Document Timestamps: Although MongoDB uses 64-bit for timestamps, but only the first 32-bit are essential. Thus, the ObjectID of each document consists of 4-byte timestamp, 5-byte random number, and 3-byte serial number. To get the timestamp of a document, use ObjectID.getTimestamp() function.

Get an ISODate:

> ISODate("2013-03-01")
ISODate("2013-03-01T00:00:00Z")

Get the timestamp from the _id object:

> db.penguins.findOne()._id.getTimestamp()
ISODate("2014-12-23T02:57:31Z")

Get the timestamp of the last added record:

> db.penguins.find().sort({_id:-1}).limit(1).forEach(function (doc){ print(doc._id.getTimestamp()) })
Tue Dec 23 2014 03:04:53 GMT+0000 (UTC)

Loop, get the system date:

> db.penguins.find().forEach(function (doc){ doc["timestamp_field"] = new Date(); printjson(doc); })
{
        "_id" : ObjectId("5498dbc9f83a61f58ef6c6d7"),
        "penguin" : "skipper",
        "timestamp_field" : ISODate("2014-12-23T03:15:56.257Z")
}
{
        "_id" : ObjectId("5498dbd5f83a61f58ef6c6d8"),
        "penguin" : "kowalski",
        "timestamp_field" : ISODate("2014-12-23T03:15:56.258Z")
}

Loop, get the date of each row:

> db.penguins.find().forEach(function (doc){ doc["timestamp_field"] = doc._id.getTimestamp(); printjson(doc); })
{
        "_id" : ObjectId("5498dbc9f83a61f58ef6c6d7"),
        "penguin" : "skipper",
        "timestamp_field" : ISODate("2014-12-23T03:04:41Z")
}
{
        "_id" : ObjectId("5498dbd5f83a61f58ef6c6d8"),
        "penguin" : "kowalski",
        "timestamp_field" : ISODate("2014-12-23T03:04:53Z")
}

Filter down to just the dates

> db.penguins.find().forEach(function (doc){ doc["timestamp_field"] = doc._id.getTimestamp(); printjson(doc["timestamp_field"]); })
ISODate("2014-12-23T03:04:41Z")
ISODate("2014-12-23T03:04:53Z")

Filter down further for just the strings:

> db.penguins.find().forEach(function (doc){ doc["timestamp_field"] = doc._id.getTimestamp(); print(doc["timestamp_field"]) })
Tue Dec 23 2014 03:04:41 GMT+0000 (UTC)
Tue Dec 23 2014 03:04:53 GMT+0000 (UTC)

Print a bare date, get its type, assign a date:

> print(new Date())
Tue Dec 23 2014 03:30:49 GMT+0000 (UTC)
> typeof new Date()
object
> new Date("11/21/2012");
ISODate("2012-11-21T00:00:00Z")

Convert instance of date to yyyy-MM-dd

> print(d.getFullYear()+"-"+(d.getMonth()+1)+"-"+d.getDate())
2014-1-1

get it in yyyy-MM-dd format for each row:

> db.penguins.find().forEach(function (doc){ d = doc._id.getTimestamp(); print(d.getFullYear()+"-"+(d.getMonth()+1)+"-"+d.getDate()) })
2014-12-23
2014-12-23

the toLocaleDateString is briefer:

> db.penguins.find().forEach(function (doc){ d = doc._id.getTimestamp(); print(d.toLocaleDateString()) })
Tuesday, December 23, 2014
Tuesday, December 23, 2014

Get each row in yyyy-MM-dd HH:mm:ss format:

> db.penguins.find().forEach(function (doc){ d = doc._id.getTimestamp(); print(d.getFullYear()+"-"+(d.getMonth()+1)+"-"+d.getDate() + " " + d.getHours() + ":" + d.getMinutes() + ":" + d.getSeconds()) })
2014-12-23 3:4:41
2014-12-23 3:4:53

Get the date of the last added row:

> db.penguins.find().sort({_id:-1}).limit(1).forEach(function (doc){ print(doc._id.getTimestamp()) })
Tue Dec 23 2014 03:04:53 GMT+0000 (UTC)

GridFS

GridFS is the MongoDB specification for storing and retrieving large files such as images, audio files, video files, etc. It is kind of a file system to store files but its data is stored within MongoDB collections. GridFS has the capability to store files even greater than its document size limit of 16MB.

GridFS divides a file into chunks and stores each chunk of data in a separate document, each of maximum size 255k.

GridFS by default uses two collections fs.files and fs.chunks to store the file's metadata and the chunks. Each chunk is identified by its unique _id ObjectId field. The fs.files serves as a parent document. The files_id field in the fs.chunks document links the chunk to its parent.

Following is a sample document of fs.files collection −

{
   "filename": "test.txt",
   "chunkSize": NumberInt(261120),
   "uploadDate": ISODate("2014-04-13T11:32:33.557Z"),
   "md5": "7b762939321e146569b07f72c62cca4f",
   "length": NumberInt(646)
}

The document specifies the file name, chunk size, uploaded date, and length.

Following is a sample document of fs.chunks document −

{
   "files_id": ObjectId("534a75d19f54bfec8a2fe44b"),
   "n": NumberInt(0),
   "data": "Mongo Binary Data"
}

Adding Files to GridFS

Now, we will store an mp3 file using GridFS using the put command. For this, we will use the mongofiles.exe utility present in the bin folder of the MongoDB installation folder.

Open your command prompt, navigate to the mongofiles.exe in the bin folder of MongoDB installation folder and type the following code −

>mongofiles.exe -d gridfs put song.mp3

Here, gridfs is the name of the database in which the file will be stored. If the database is not present, MongoDB will automatically create a new document on the fly. Song.mp3 is the name of the file uploaded. To see the file's document in database, you can use find query −

>db.fs.files.find()

The above command returned the following document −

{
   _id: ObjectId('534a811bf8b4aa4d33fdf94d'),
   filename: "song.mp3",
   chunkSize: 261120,
   uploadDate: new Date(1397391643474), md5: "e4f53379c909f7bed2e9d631e15c1c41",
   length: 10401959
}

We can also see all the chunks present in fs.chunks collection related to the stored file with the following code, using the document id returned in the previous query −

>db.fs.chunks.find({files_id:ObjectId('534a811bf8b4aa4d33fdf94d')})

In my case, the query returned 40 documents meaning that the whole mp3 document was divided in 40 chunks of data.

Homework:

Reading: Model document relations in MongoDB (https://www.ecourse.org/news.asp?which=5342)

Correctness Questions: online at ecourse.org

Hands-on Questions (copy both the question number and the question before each answer):

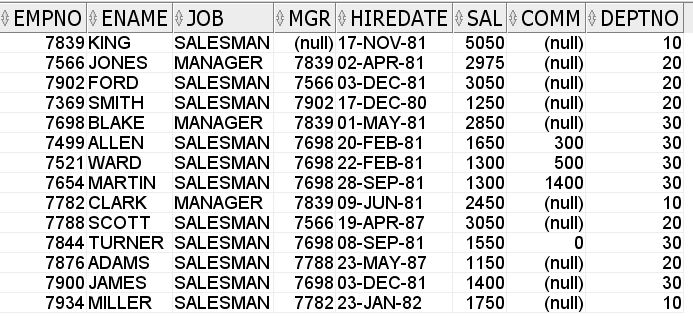

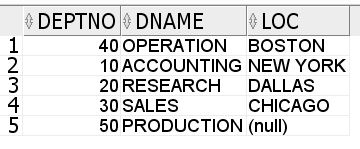

1. Follow the reading materials and write scripts to create collections for the data in the following relational model:

2. Find the document with ename as JONES

3. For all the documents inserted by Question 1, find their timestamps

4. Find the last three employees documents inserted in Question 1

5. Find the ObjectID of all the documents in the employees collection created in Question 1

6. Find the ename, hiredate, and job  fields of all the documents in the employees collection in Question  1

7. Find the top three salary makers in the employee collection

8. Find the first five employees hired by the company

9. Create a new user account with readWrite permission for your database

10.  Find the last document you inserted into the employee collection
